Compliance Reporting with Athena

Aggregate and schedule reports from immutable audit logs stored in the S3 bucket audit-demo-logs.

Clean

Amazon Athena

  1. Prepare log data on S3

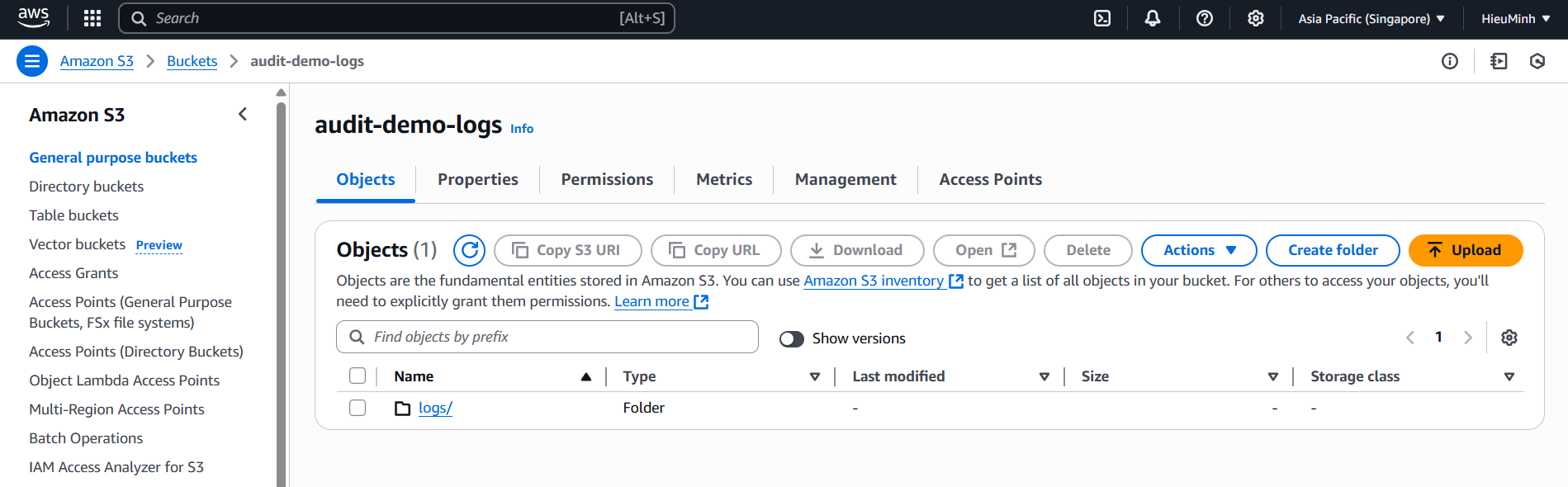

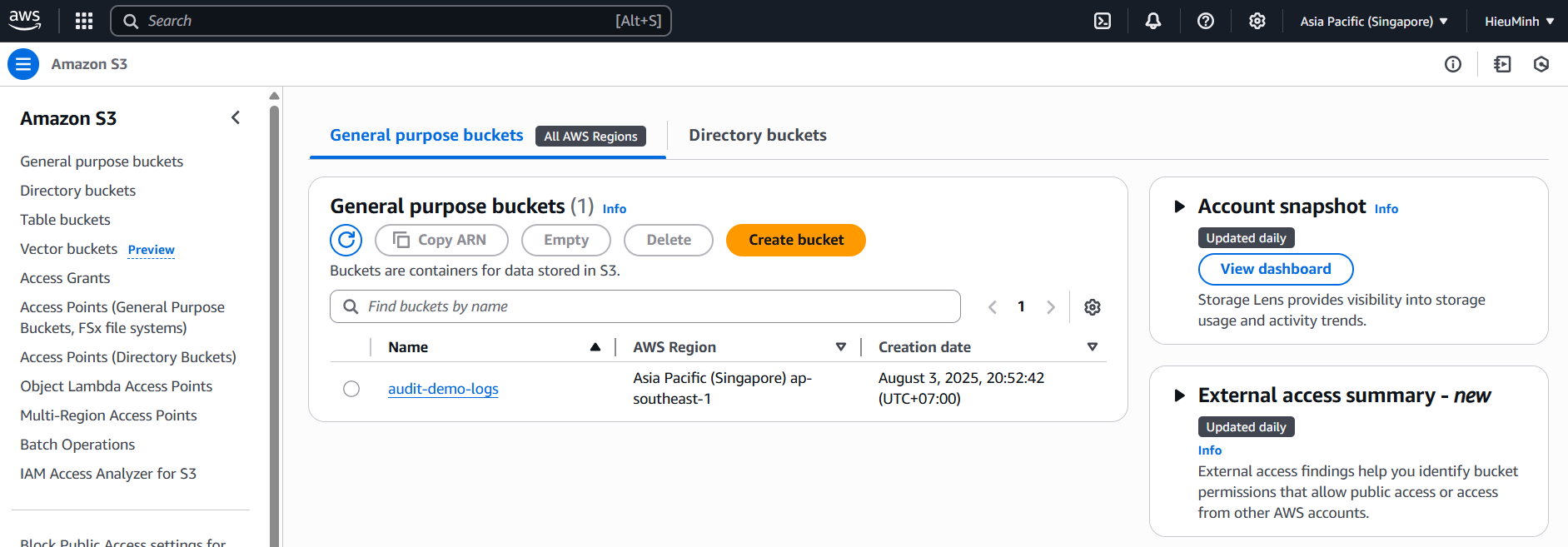

  • Logs have been written to the audit-demo-logs bucket in the logs/ folder (see step 4).
  • Ensure bucket versioning and Object Lock are still active, so data cannot be deleted/overwritten.

Clean

Clean

  1. Create AWS Glue Crawler Clean

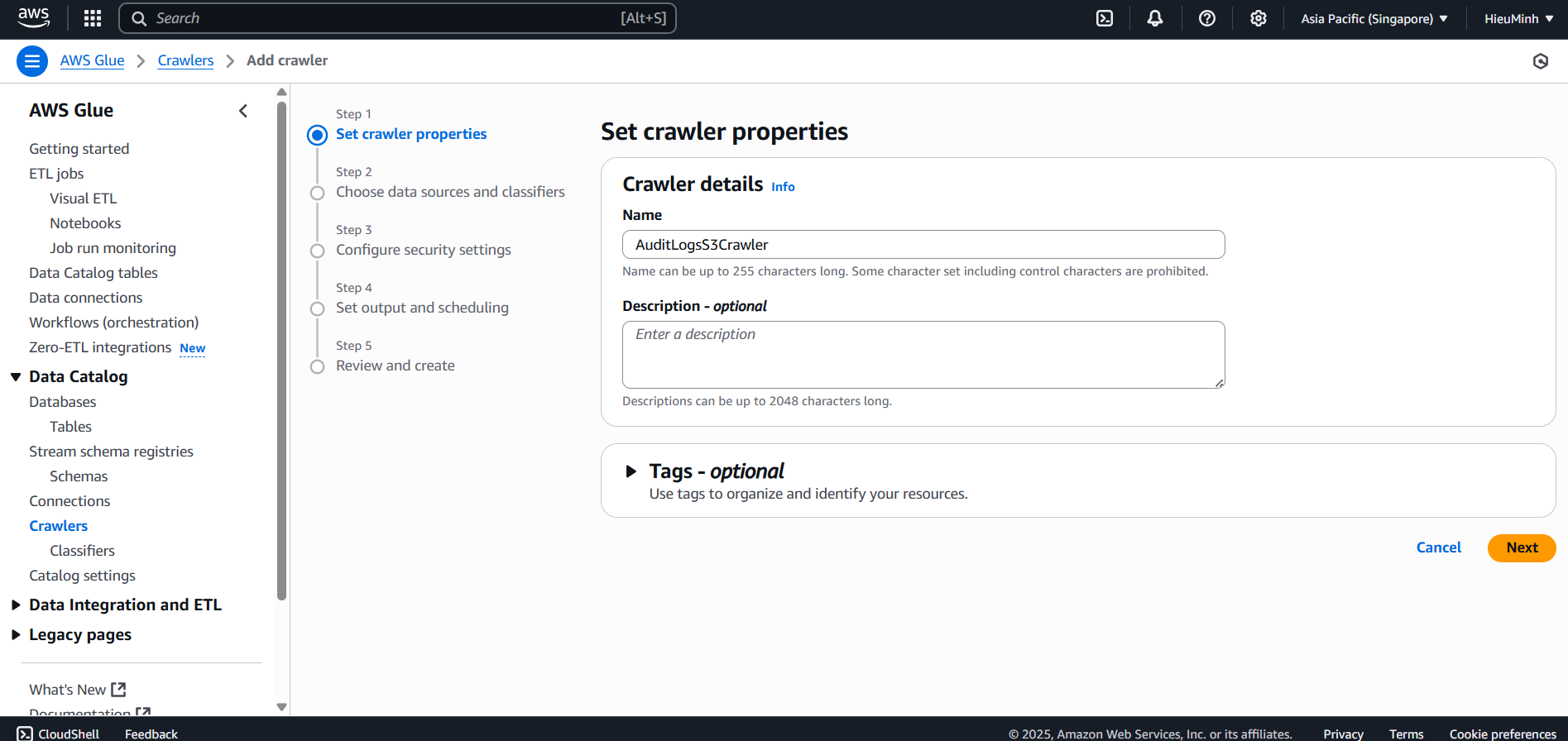

  • AWS Console → Glue → Crawlers → Add crawler.
  • Name: AuditLogsS3Crawler.

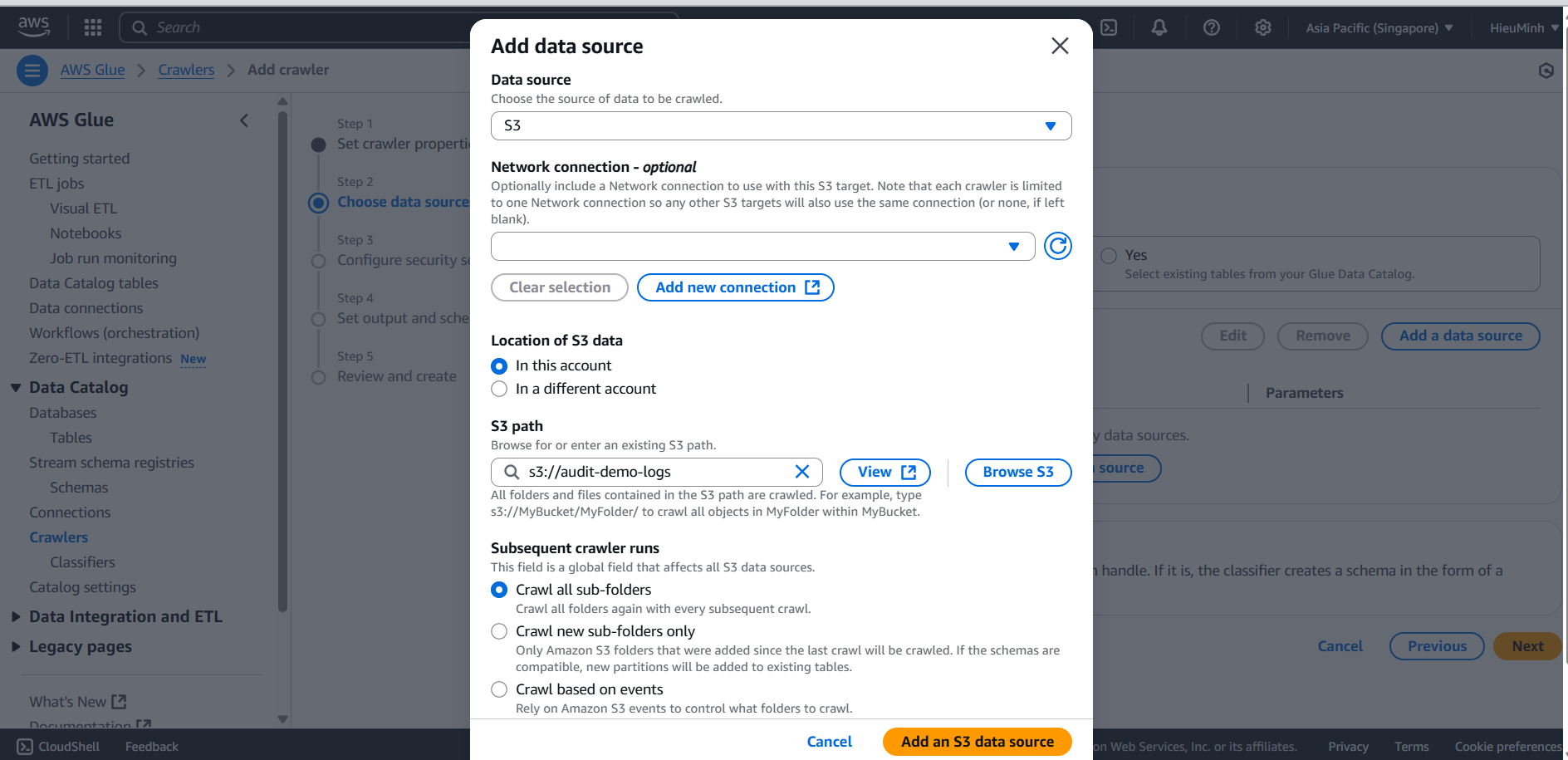

  • Data store: select S3, enter path s3://audit-demo-logs/logs/.

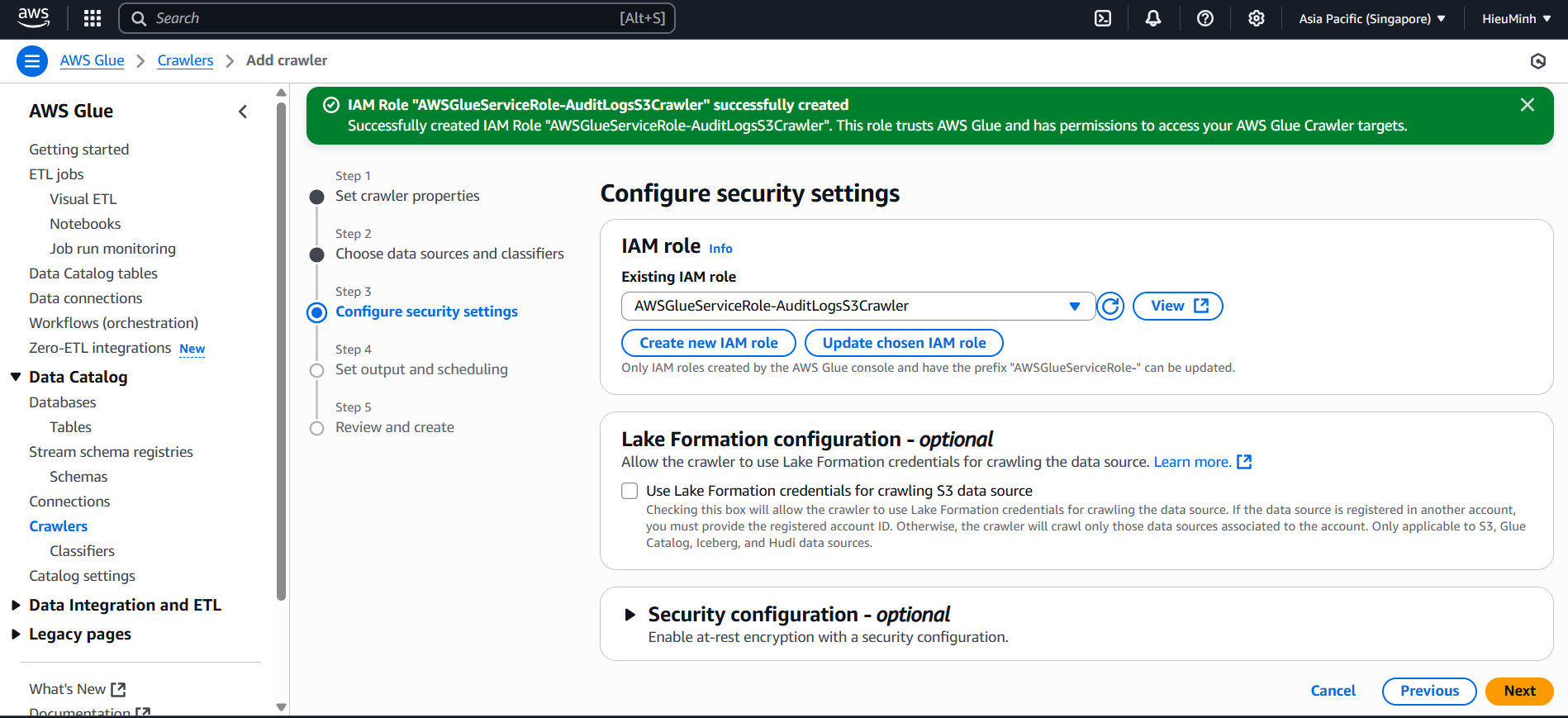

  • IAM role: select (or create) GlueCrawlerRole with permissions:

JSON:

  • {
  • "Effect": "Allow",

  •  "Action": ["s3:GetObject","s3:ListBucket"],

  • "Resource": ["arn:aws:s3:::audit-demo-logs","arn:aws:s3:::audit-demo-logs/logs/*"]
  • }

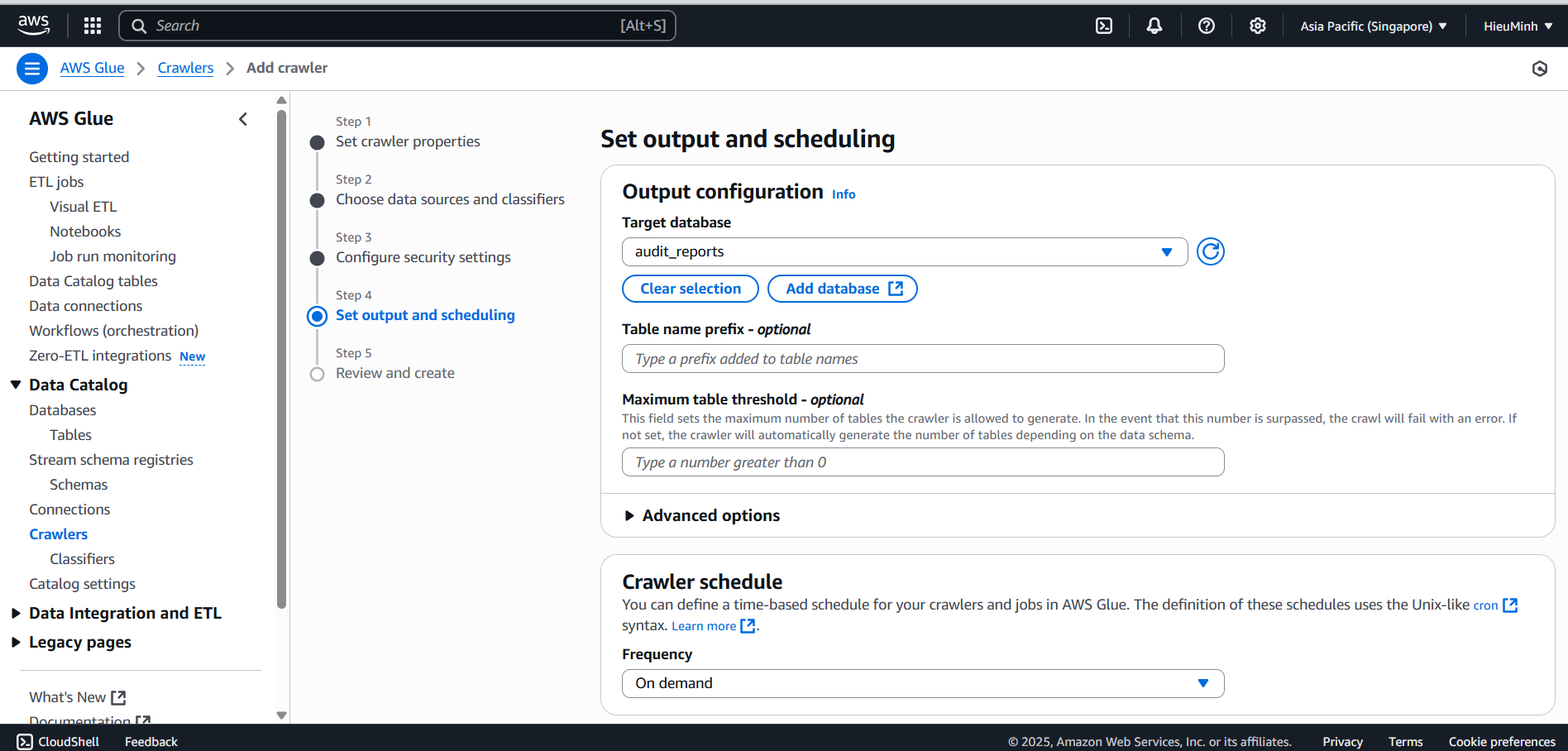

  • Output → Database: audit_reports, Table prefix: audit_logs.
  • Schedule: None (run on demand).

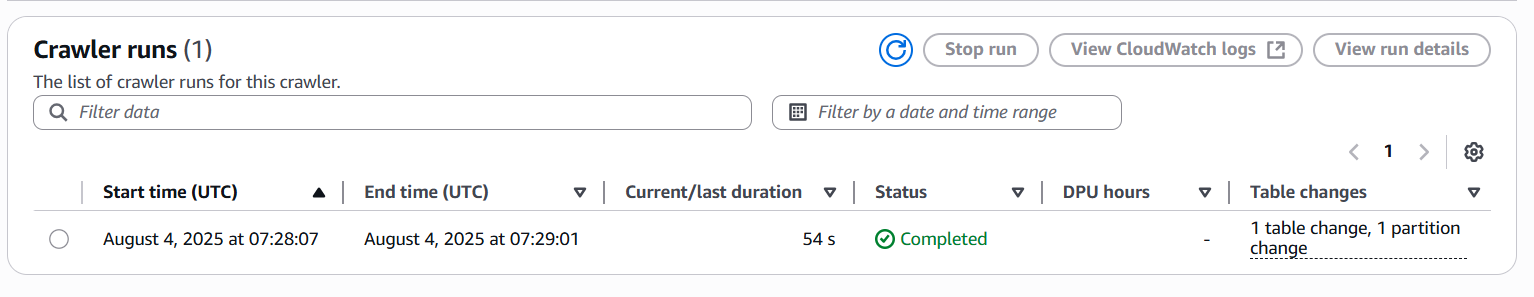

  • After creation, select Run crawler and wait for the status Succeeded. Clean

Clean

Clean

Clean

  1. Configure Amazon Athena
  • AWS Console → Athena.

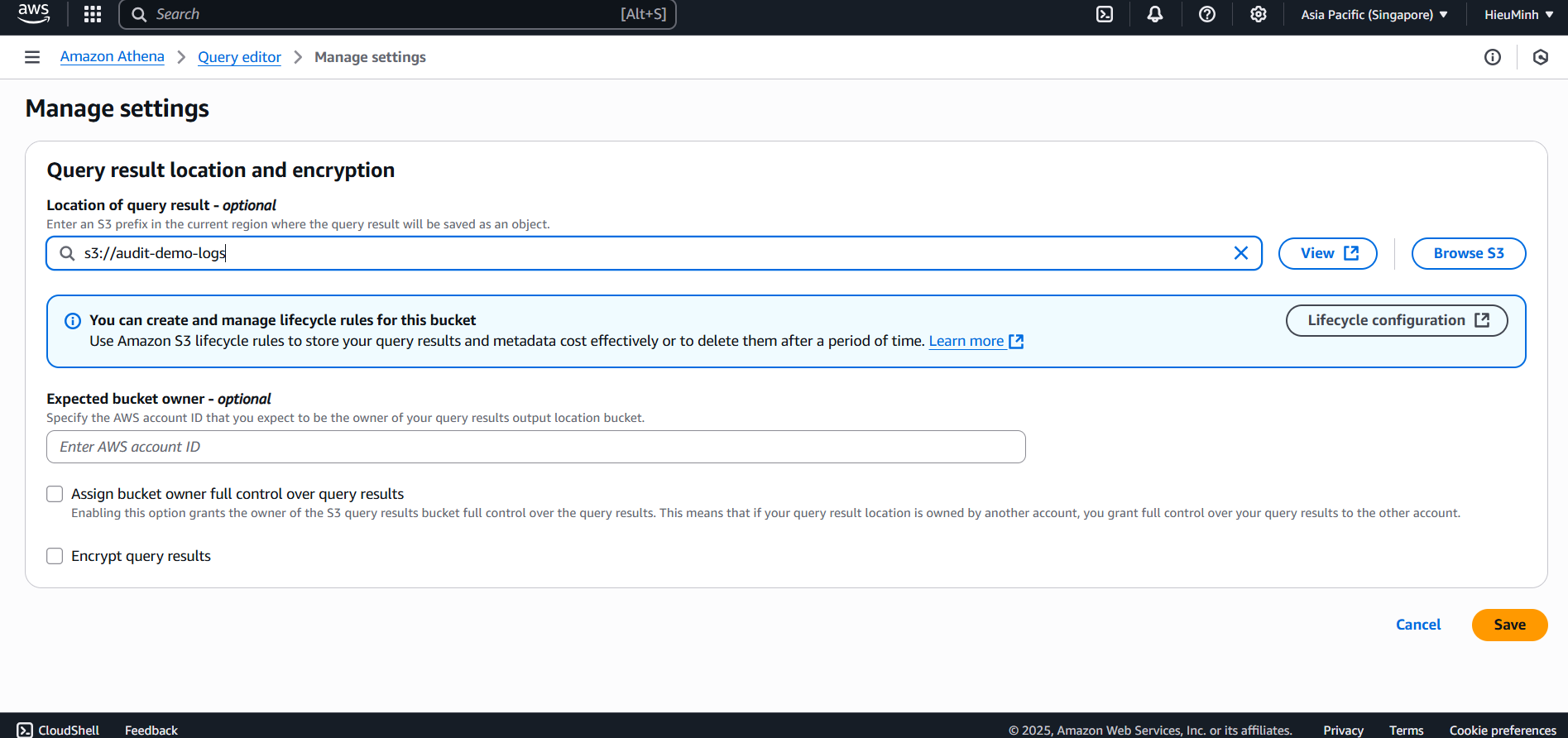

  • Settings (top right) → Query result location: s3://audit-demo-query-results/.

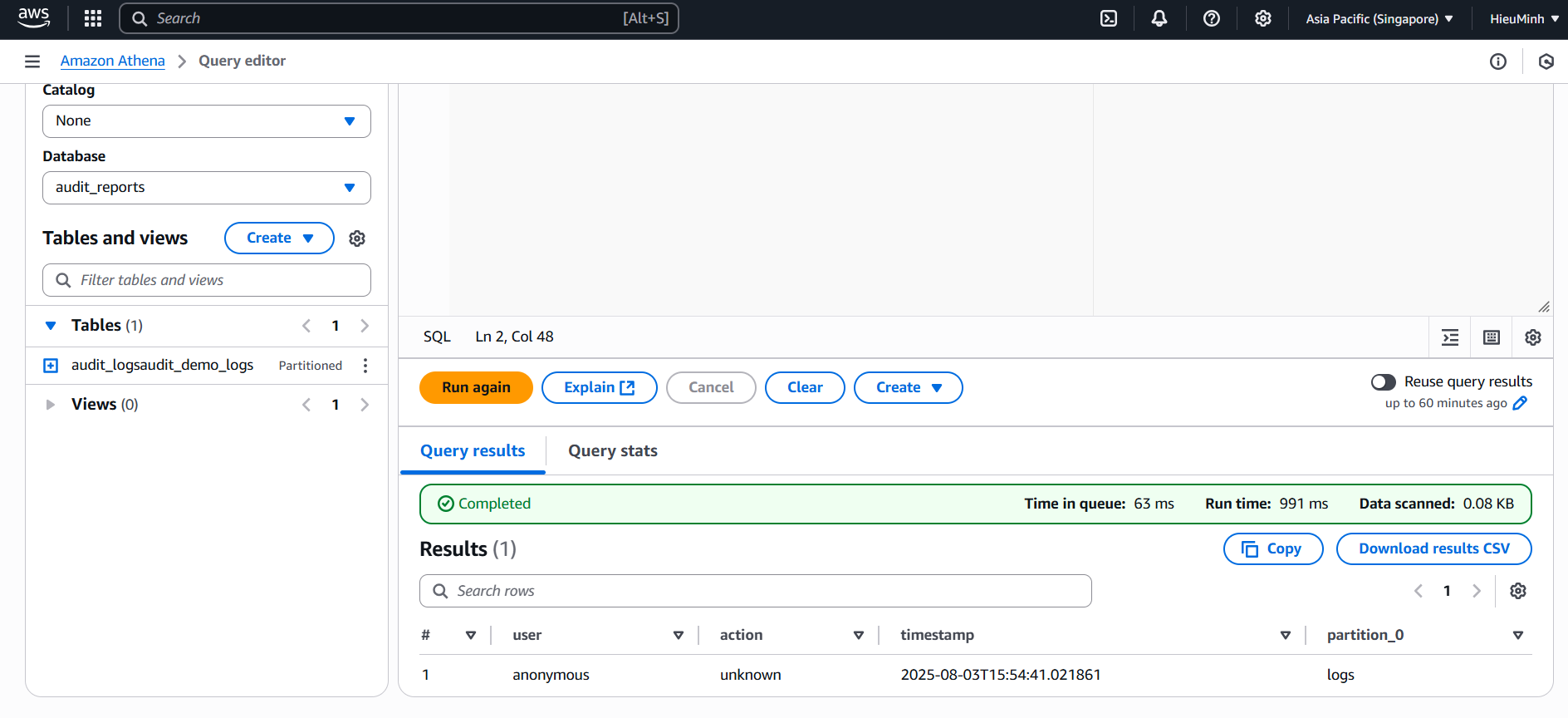

  • In Query Editor, select the database audit_reports.

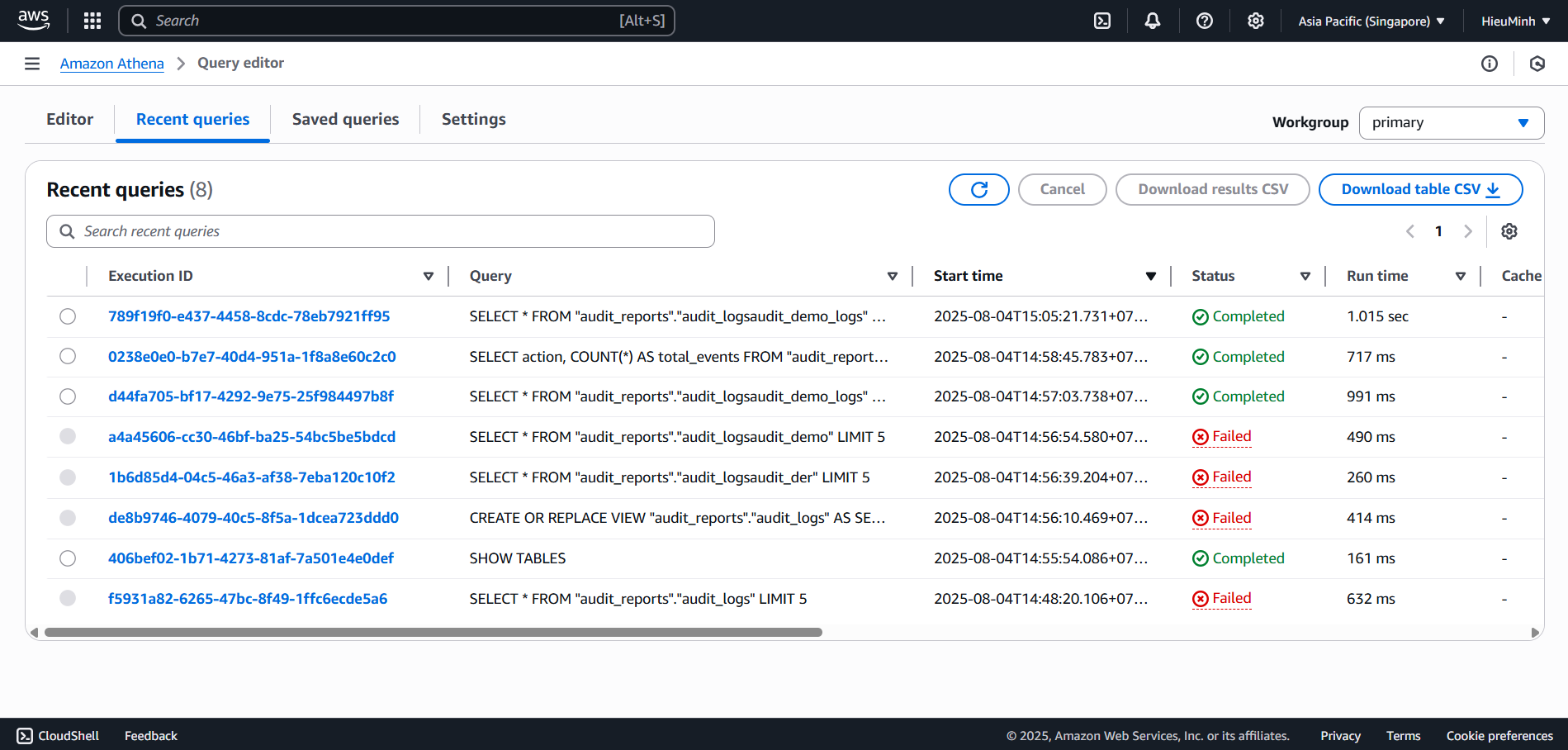

  • Check the table:

SELECT * FROM “audit_reports”.“audit_logsaudit_demo_logs” LIMIT 5;

Clean

Clean

Clean

  1. Verify results

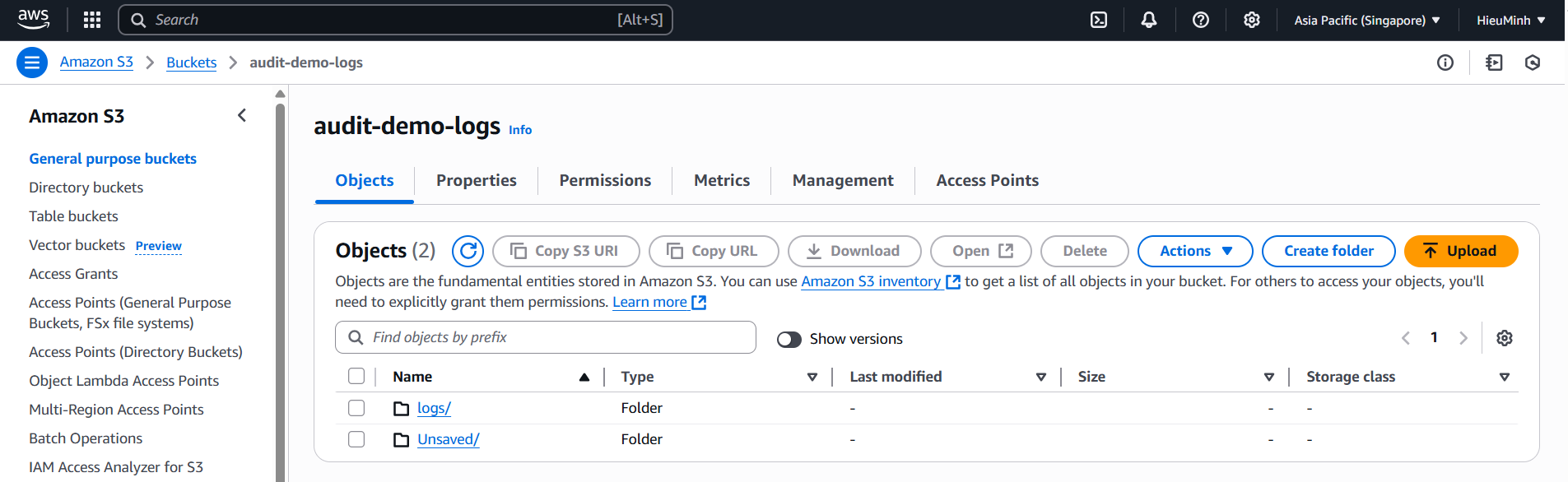

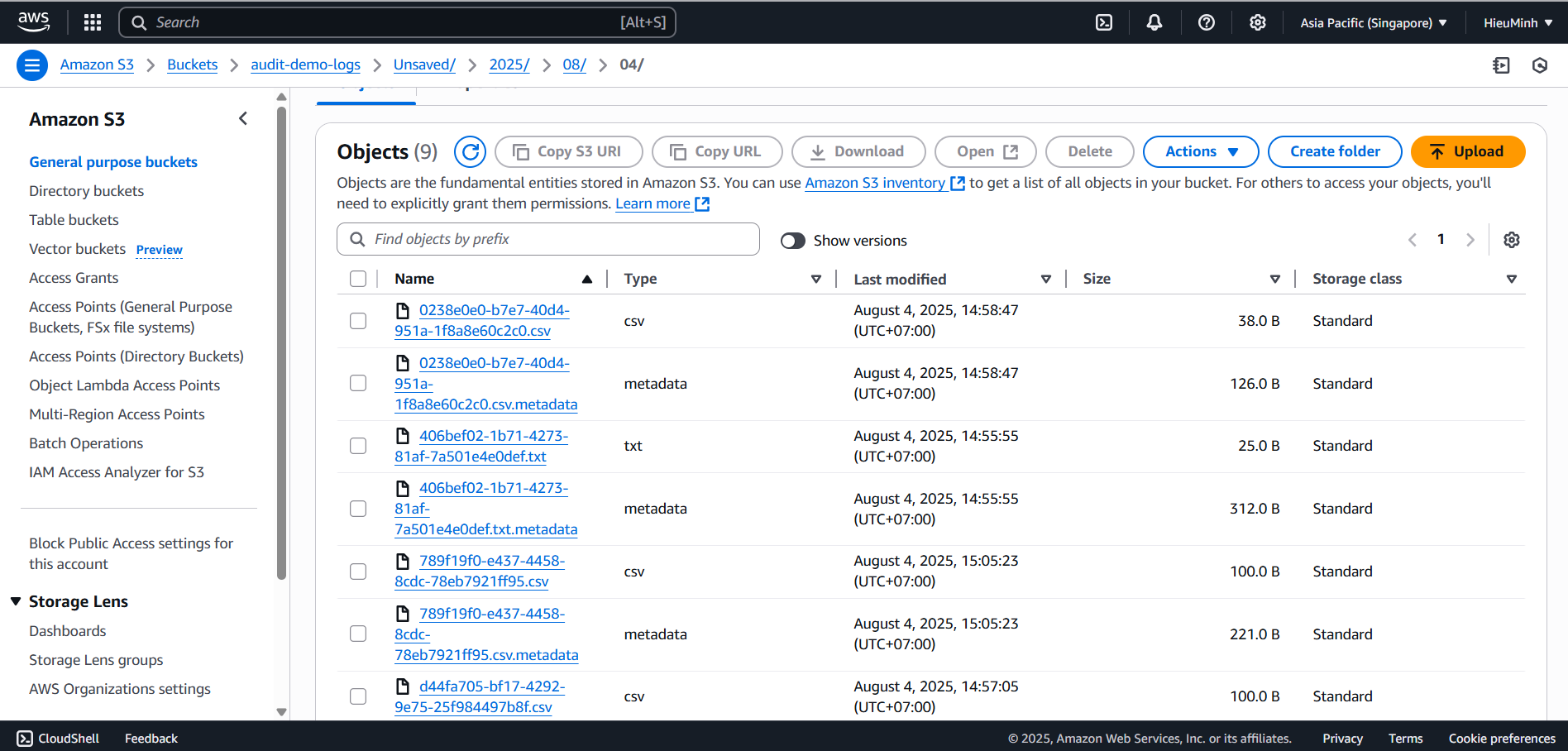

  • Go to S3 audit-demo-query-results/Unsaved -> Check the file
